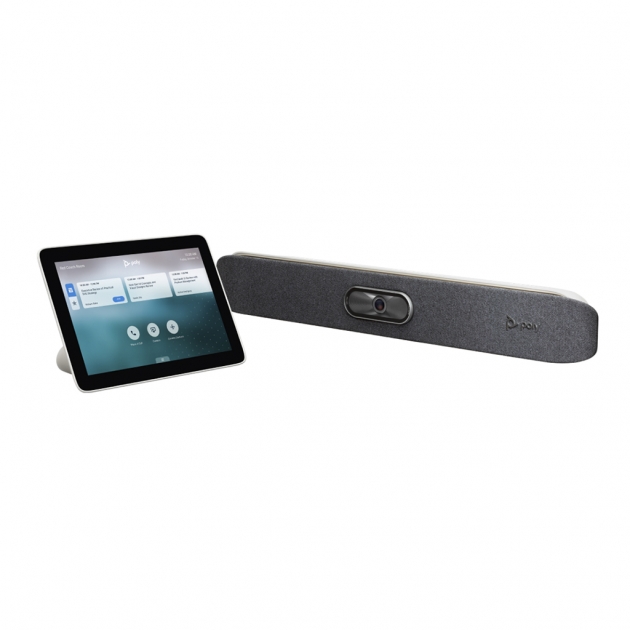

STUDIO X30 視訊會議主機
產品說明
產 品 介 紹
產品詳細規格
| PACKAGE INCLUDES | • Poly Studio X30 |
| • Cable bundle | |
| • Monitor clamp | |
| • Privacy cover | |
| VIDEO STANDARDS AND PROTOCOLS | • H.264 AVC, H.264 High Profile, H.265 |
| VIDEO INPUT | • 1x HDMI |
| VIDEO OUT | • 1x HDMI |
| • Touch display compatible | |
| PEOPLE VIDEO RESOLUTION | • 4K, 30 fps (TX and RX) from 2048 Kbps |
| • 1080p, 60 fps from 1740 Kbps | |
| • 1080p, 30 fps from 1024 Kbps | |
| • 720p, 60 fps from 832 Kbps | |
| • 720p, 30 fps from 512 Kbps | |
| CONTENT VIDEO RESOLUTION | • Input |
| - UHD (3840 x 2160) | |
| - HD (1920 x 1080p) | |
| - WSXGA+ (1680 x 1050) | |
| - UXGA (1600 x 1200) | |
| - SXGA (1280 x 1024) | |
| - WXGA (1280 x 768) | |
| - HD (1280 x 720p) | |
| - XGA (1024 x 768) | |
| - SVGA (800 x 600 | |
| • Output | |
| - UHD (3840 x 2160) | |
| - WUXGA (1920 x 1200) | |
| - HD (1920 x 1080) | |
| - WSXGA+ (1680 x 1050) | |
| - SXGA+ (1400 x 1050) | |
| - SXGA (1280 x 1024) | |
| - HD (1280 x 720) | |
| - XGA (1024 x 768) | |
| • Content frame rate | |
| - 5–60 fps (up to 4K resolution at 15 fps in call) | |
| CONTENT SHARING | Poly Content App support |
| • Apple Airplay | |
| • Miracast | |
| • HDMI input | |
| • Whiteboarding | |
| CAMERA | • 4x digital zoom |
| • 120° FOV | |
| • UHD 2160p (4K) capture resolution | |
| • Automatic people framing | |
| AUDIO INPUT | • Four MEMS microphones |
| AUDIO OUTPUT | • Single Speaker |
| OTHER INTERFACES | 1x USB-A (3.0) |
| • 1x USB-C | |
| • Bluetooth 5.0 | |
| • WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency | |
| AUDIO STANDARDS AND PROTOCOLS | • 22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719 |
| • 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C | |
| • 7 kHz bandwidth with G.722, G.722.1 | |
| • 3.4 kHz bandwidth with G.711, G.728, G.729A | |
| NETWORK | IPv4 |
| • 1x 10/100/1G Ethernet | |
| • Auto-MDIX | |
| • H.323 and/or SIP up to 6 Mbps in Poly App video mode | |
| • Polycom Lost Packet Recovery (LPR) technology | |
| • Dynamic bandwidth allocation | |
| • Reconfigurable MTU size | |
| • Web proxy support—basic, digest, and NTLM | |
| • Simple Certificate Enrollment Protocol (SCEP) | |
| SECURITY | Media Encryption (H.323, SIP): AES-128, AES-256 |
| • H.235.6 support | |
| • Authenticated access to admin menus, web interface, and APIs | |
| • Local account password policy configuration | |
| • Security profiles | |
| • Local account and login port lockout | |
| • Secure defaults | |
| • Remote logging with support for TLS | |
| • Active directory external authentication | |
| OPTIONS | • VESA and wall mount kit |
| • Stand | |
| • Poly TC8 | |
| INTEROPERABILITY | • Support for native 3rd party applications, including Zoom Rooms for Android |
| • All cloud service providers through Poly Video App mode | |
| ELECTRICAL | • Auto sensing power supply |
| • Typical operating voltage/power | |
| - 37 VA @ 120 V @ 60 Hz | |
| - 37 VA @ 230 V @ 50/60 Hz | |
| • Typical BTU/h: 65 | |
| ENVIRONMENTAL SPECIFICATION | • Operating temperature: 0 to 40 °C |
| • Operating humidity (non-condensing): 15 to 80% | |
| • Non-operating temperature: -40 to 70 °C | |
| • Non-operating humidity (non-condensing): 5 to 95% | |
| • Maximum altitude: 16,000 ft | |
| PHYSICAL CHARACTERISTICS | • 17.39 W x 2.46 H x 2.42 D (inches) 441.8 W x 62.5 H x 61.6 D (mm) |
| • 1.6 lbs/.73 kg |
